RustとRaspberry Pi Pico WでBLEをスキャンする

授業でRaspberry Pi Pico Wを使う機会があったのですが、一身上の都合でC言語やMicroPythonを使うことが出来ないので、Rustで頑張ってみます。

環境

Raspberry Pi Pico W
Rust 1.83.0

依存関係のインストール

Raspberry Pi Pico Wに搭載されたRP2040はARM Cortex-M0+なので、クロスコンパイラが必要です。

rustup target add thumbv6m-none-eabi

その他にリンカーやランナーもインストールします。

cargo install flip-link elf2uf2-rs

プロジェクトの作成

cargo init

ライブラリの追加

以下の2つのライブラリを/lib以下にsubmoduleとして追加します。

embassy (92326f1)
trouble (419e298)

mkdir lib
git submodule add https://github.com/embassy-rs/embassy.git lib/embassy
git submodule add https://github.com/embassy-rs/trouble.git lib/trouble

Cargo.tomlに以下の設定を追加します。
embassy-time-driverは頑張ってもバージョンがコンフリクトしたので、patchで解決しました。

[dependencies]
embassy-sync = { version = "0.6", path = "lib/embassy/embassy-sync", features = ["defmt"] }
embassy-executor = { version = "0.7", path = "lib/embassy/embassy-executor", default-features = false, features = ["task-arena-size-98304", "arch-cortex-m", "executor-thread", "defmt", "executor-interrupt"] }
embassy-time = { version = "0.4.0", path = "lib/embassy/embassy-time", default-features = false, features = ["defmt", "defmt-timestamp-uptime"] }
embassy-rp = { version = "0.3.0", path = "lib/embassy/embassy-rp", features = ["defmt", "unstable-pac", "time-driver", "critical-section-impl", "rp2040"] }
embassy-usb = { version = "0.3.0", path = "lib/embassy/embassy-usb", features = ["defmt"] }
embassy-usb-logger = { version = "0.2.0", path = "lib/embassy/embassy-usb-logger" }
embassy-futures = { version = "0.1.1", path = "lib/embassy/embassy-futures" }

trouble-host = { path = "lib/trouble/host", features = ["scan"] }
bt-hci = { version = "0.2", default-features = false, features = ["defmt"] }

futures = { version = "0.3", default-features = false, features = ["async-await"]}
cyw43 = { version = "0.3.0", path = "lib/embassy/cyw43", features = ["defmt", "firmware-logs", "bluetooth"] }
cyw43-pio = { version = "0.3.0", path = "lib/embassy/cyw43-pio", features = ["defmt"] }

defmt = "0.3"
defmt-rtt = "0.4.0"

cortex-m = { version = "0.7.6" }
cortex-m-rt = "0.7.0"
panic-probe = { version = "0.3", features = ["print-defmt"] }
static_cell = "2"
portable-atomic = { version = "1.5", features = ["critical-section"] }
log = "0.4"

[patch.crates-io]
embassy-time-driver = { path = "lib/embassy/embassy-time-driver" }

その他に必要そうなファイルと設定

cp lib/embassy/examples/rp/build.rs .
cp lib/embassy/examples/rp/memory.x .
cp -r lib/embassy/examples/rp/.cargo .
cp -r lib/embassy/cyw43-firmware lib

.cargo/config.tomlのrunnerは、elf2uf2-rsを使うように設定します。

[target.'cfg(all(target_arch = "arm", target_os = "none"))']
runner = "probe-rs run --chip RP2040"
runner = "elf2uf2-rs -d"

[build]
target = "thumbv6m-none-eabi"        # Cortex-M0 and Cortex-M0+

[env]
DEFMT_LOG = "debug"

ここまでで以下のようになっているはずです。

.
├── .cargo
│   └── config.toml
├── .gitignore
├── .gitmodules
├── Cargo.lock
├── Cargo.toml
├── build.rs
├── lib
│   ├── cyw43-firmware
│   ├── embassy
│   └── trouble
├── memory.x
└── src
    └── main.rs

Hello World

PicoはUSB経由でシリアル通信が出来るので、Hello, World!を送信してみます。

#![no_std]
#![no_main]

use embassy_executor::Spawner;
use embassy_rp::bind_interrupts;
use embassy_rp::peripherals::USB;
use embassy_rp::usb::{Driver, InterruptHandler};
use embassy_time::Timer;
use {defmt_rtt as _, panic_probe as _};

bind_interrupts!(struct Irqs {
    USBCTRL_IRQ => InterruptHandler<USB>;
});

#[embassy_executor::task]
async fn logger_task(driver: Driver<'static, USB>) {
    embassy_usb_logger::run!(1024, log::LevelFilter::Info, driver);
}

#[embassy_executor::main]
async fn main(spawner: Spawner) {
    let p = embassy_rp::init(Default::default());
    let driver = Driver::new(p.USB, Irqs);
    spawner.spawn(logger_task(driver)).unwrap();

    loop {
        log::info!("Hello, world!");
        Timer::after_secs(1).await;
    }
}

BOOTSELを押しながら接続し、cargo runでビルドして書き込みます。

cargo run --release

うまくいけば、Hello, world!が1秒毎に表示されます。

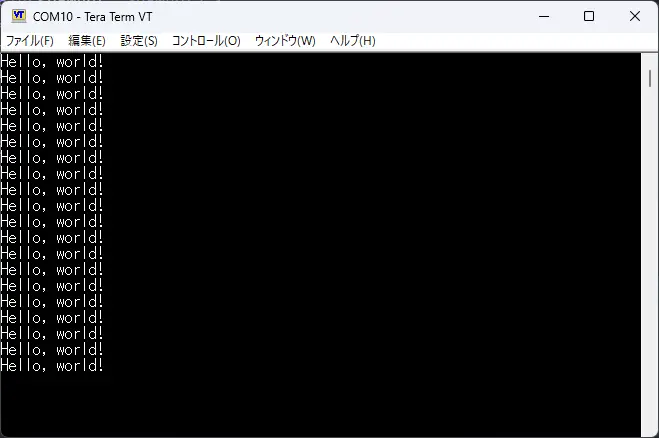

Hello, world!

BLEのスキャン

まずはBluetoothにアクセスするためのセットアップを行います。

#![no_std]
#![no_main]

use bt_hci::controller::ExternalController;
use cyw43_pio::PioSpi;
use defmt::*;
use embassy_executor::Spawner;
use embassy_rp::bind_interrupts;
use embassy_rp::gpio::{Level, Output};
use embassy_rp::peripherals::{DMA_CH0, PIO0, USB};
use embassy_rp::pio::{InterruptHandler as PioInterruptHandler, Pio};
use embassy_rp::usb::{Driver, InterruptHandler as UsbInterruptHandler};
use static_cell::StaticCell;
use {defmt_rtt as _, embassy_time as _, panic_probe as _};

bind_interrupts!(struct Irqs {
    USBCTRL_IRQ => UsbInterruptHandler<USB>;
    PIO0_IRQ_0 => PioInterruptHandler<PIO0>;
});

#[embassy_executor::task]
async fn logger_task(driver: Driver<'static, USB>) {
    embassy_usb_logger::run!(1024, log::LevelFilter::Info, driver);
}

#[embassy_executor::task]
async fn cyw43_task(
    runner: cyw43::Runner<'static, Output<'static>, PioSpi<'static, PIO0, 0, DMA_CH0>>,
) -> ! {
    runner.run().await
}

#[embassy_executor::main]
async fn main(spawner: Spawner) {
    let p = embassy_rp::init(Default::default());
    let driver = Driver::new(p.USB, Irqs);
    spawner.spawn(logger_task(driver)).unwrap();

    let fw = include_bytes!("../lib/cyw43-firmware/43439A0.bin");
    let clm = include_bytes!("../lib/cyw43-firmware/43439A0_clm.bin");
    let btfw = include_bytes!("../lib/cyw43-firmware/43439A0_btfw.bin");

    let pwr = Output::new(p.PIN_23, Level::Low);
    let cs = Output::new(p.PIN_25, Level::High);
    let mut pio = Pio::new(p.PIO0, Irqs);
    let spi = PioSpi::new(
        &mut pio.common,
        pio.sm0,
        cyw43_pio::DEFAULT_CLOCK_DIVIDER,
        pio.irq0,
        cs,
        p.PIN_24,
        p.PIN_29,
        p.DMA_CH0,
    );

    static STATE: StaticCell<cyw43::State> = StaticCell::new();
    let state = STATE.init(cyw43::State::new());
    let (_net_device, bt_device, mut control, runner) =
        cyw43::new_with_bluetooth(state, pwr, spi, fw, btfw).await;
    unwrap!(spawner.spawn(cyw43_task(runner)));
    control.init(clm).await;

    let controller: ExternalController<_, 10> = ExternalController::new(bt_device);
}

次にスキャナーを追加します。

use bt_hci::cmd::le::{LeSetScanEnable, LeSetScanParams};
use bt_hci::controller::ControllerCmdSync;
use embassy_futures::join::join;
use trouble_host::prelude::*;

/// Size of L2CAP packets
const L2CAP_MTU: usize = 128;

/// Max number of connections
const CONNECTIONS_MAX: usize = 1;

/// Max number of L2CAP channels.
const L2CAP_CHANNELS_MAX: usize = 3; // Signal + att + CoC

type Resources<C> = HostResources<C, CONNECTIONS_MAX, L2CAP_CHANNELS_MAX, L2CAP_MTU>;

pub async fn scan<C>(controller: C)
where
    C: Controller + ControllerCmdSync<LeSetScanParams> + ControllerCmdSync<LeSetScanEnable>,
{
    let mut resources = Resources::new(PacketQos::None);
    let (_stack, _, mut central, mut runner) =
        trouble_host::new(controller, &mut resources).build();

    let config = ScanConfig {
        ..Default::default()
    };

    log::info!("Scanning for peripheral...");
    let _ = join(runner.run(), async {
        loop {
            let result = central.scan(&config).await.unwrap();
            for report in result.iter() {
                report
                    .map(|report| {
                        log::info!("Peripheral found: {:?} {:?}", report.addr, report.addr_kind);
                    })
                    .ok();
            }
        }
    })
    .await;
}

mod scanner;

// ...

#[embassy_executor::main]
async fn main(spawner: Spawner) {
    // ...

    let controller: ExternalController<_, 10> = ExternalController::new(bt_device);

    scanner::scan(controller).await;
}

これで、BLEのスキャンが出来るはずです。

cargo run --release

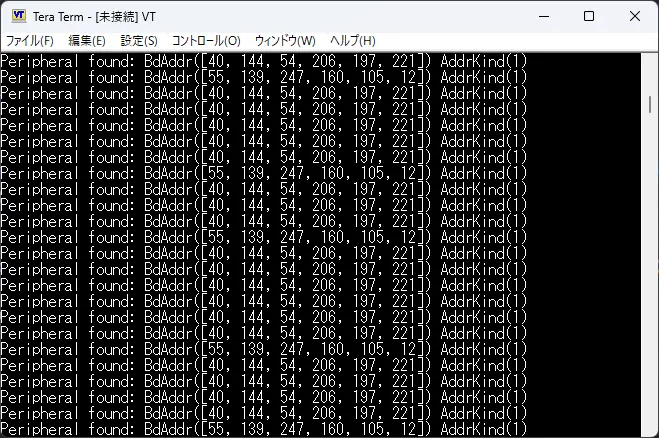

BLE Scanner
